AmphiBlast™

AmphiBlast™

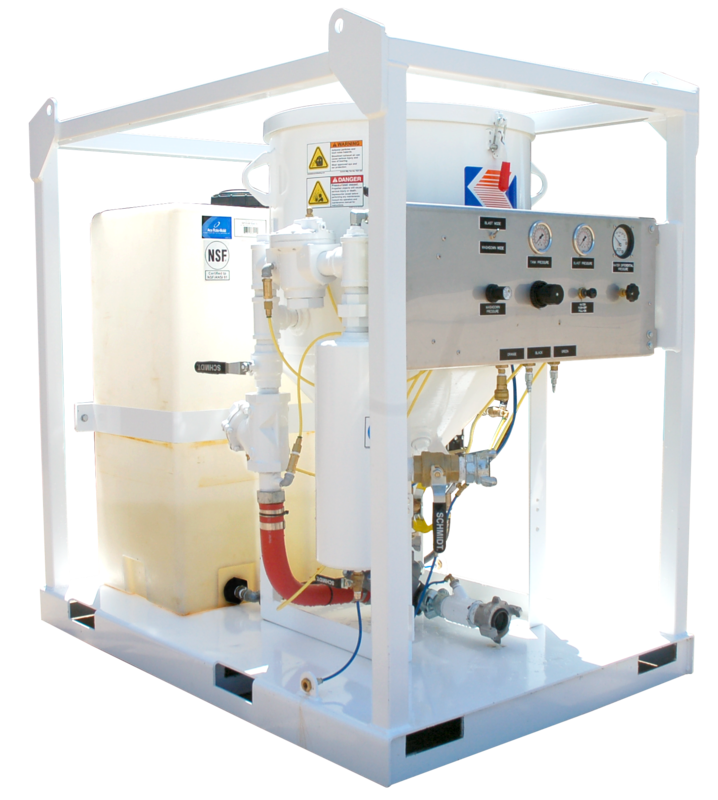

The AmphiBlast system is the industry’s most efficient and productive dual-purpose abrasive blaster. Unlike other blast systems that mix abrasive and water inside the vessel, the AmphiBlast system injects water into the blast stream after the metering valve, using a patent-pending, user friendly and uniquely precise water injection system.

SKU: AMPHIBLAST Category: Tag:

Description

The AmphiBlast system is the industry’s most efficient and productive dual-purpose abrasive blaster. Unlike other blast systems that mix abrasive and water inside the vessel, the AmphiBlast system injects water into the blast stream after the metering valve, using a patent-pending, user friendly and uniquely precise water injection system. With this system, you can quickly and consistently control every aspect: fine tune air, abrasive and water flows to achieve optimal blasting performance, all while maintaining efficient use of grit and water. Switch between wet or dry blast, blowoff and softwash™ without having to reset your air, abrasive or water, using a central, easy-to-use gauge console.

At the heart of the abrasive control system is the robust Schmidt Thompson® Valve II, used globally for nearly two decades and capable of metering a wide range of coarse or fine abrasives in the AmphiBlast system. Dry blasting with the AmphiBlast features the same productivity gains and safety advantages found only in Schmidt systems. When wet blasting, operators can set and immediately see any change in water flow by using the gauge readout. This allows the operator to dial in and consistently repeat the water flow for minimal water consumption, maximum productivity, minimum abrasive use or any other preference.

Softwash™/Blowoff

The unique softwash feature automatically lowers blast air pressure and increases water flow for an effective, gentle rinse at the flip of a switch. Flip the switch back, and the unit returns to the same blast pressure setting as before. Changing to blowoff mode is just as easy, and also provides a lower blast air pressure for easier, safer and quieter operation.

Specifications

Single Outlet:

Blast Pot: 4.5 cu. ft.
Water Tank: 80 Gallon
Size: (58″ x 38″ x 56″)
Weight: 850 lbs (empty)

Double Outlet:

Blast Pot: 6.5 cu. ft.
Water Tank: 165 Gallon
Size: (87″ x 38″ x 65″)
Weight: 1,350 lbs (empty)

Features

  • Multiple outlet capability for even greater value per nozzle and the ability to wet blast and dry blast simultaneously from the same system
  • Easily switch between modes without resetting your settings
  • Unmatched ease and consistency of water flow setting
  • Blast at high and low pressures
  • Wide range of suitable abrasives
  • Compatible with a wide range of abrasive types and sizes

* Blast pressure is set for all outlets
